The DN Solutions PUMA V8300/9300 series medium vertical turning center series is designed with an exceptionally large maximum turning diameter, accommodating a wide range of chucks from 15" up to 32"*, to serve the machining requirements of large, heavy, and complex workpieces that demand high power, outstanding reliability, and superior heavy-duty cutting performance.
Applications: Ideal for machining large, heavy, and complex components in the automotive, aerospace, and general industrial manufacturing sectors

details

1. Highlighted Technical Specifications
Robust & Vibration-Free Structure: The integrated box guideway bed design delivers vibration-free performance and ensures heavy-duty, high-precision cutting over long periods of operation.
Substantial Machining Capacity:
- Maximum swing over bed: 920 mm.
- Maximum swing over saddle: 740 mm.
- Maximum turning diameter: 830 mm.
- Maximum turning length/height: 780 mm for the 2-axis standard model (PUMA V8300) and 690 mm for the 3-axis milling model (PUMA V8300 M).
- Standard chuck size: 15 inches (with options for 18, 21, and 24 inches).
Powerful High-Torque Spindle:
- Maximum spindle speed: 2000 r/min.
- Standard Spindle Motor (Fanuc): Provides 37/30 kW (S6 40% / Cont.) with a maximum torque of 2592 N·m.
- High-power spindle option (Fanuc): Upgradeable to 45/37 kW with a maximum torque of 3153 N·m.
- Siemens Spindle Motor: Offers 42/32/28 kW (S6 40% / S6 60% / S1 Cont.) with a maximum torque of 3376 N·m.
- The highly rigid integrated gearbox structure ensures optimum torque performance during heavy-duty cutting.
- Spindle bearing diameter: 160 mm with an ASA A2-11 spindle nose.
High-Speed & Reliable Servo Turret:
- The servo-driven turret facilitates faster indexing and accurate positioning, achieving a 1st swivel indexing time of 0.25 seconds.
- Number of tool stations: 12 standard (with options for 8 or 10 stations on V8300).
- Milling model (M type): Equipped with a highly robust BMT75P turret with a low heat generation design that minimizes thermal errors. The rotary tools operate at a maximum speed of 4000 r/min (upgradeable to 8000 r/min) with a maximum power of 18.5 kW (Fanuc) / 19.9 kW (Siemens) and torque of 118 N·m (Fanuc) / 120 N·m (Siemens).
- The C-axis provides a minimum rotation command angle of 0.001°.
Advanced Productivity & Maintenance Features:
- Redesigned, highly steep bed structure facilitates the efficient disposal of high volumes of chips.
- Standard pendant arm operation panel allows easy movement and height adjustments according to the operator's workflow.

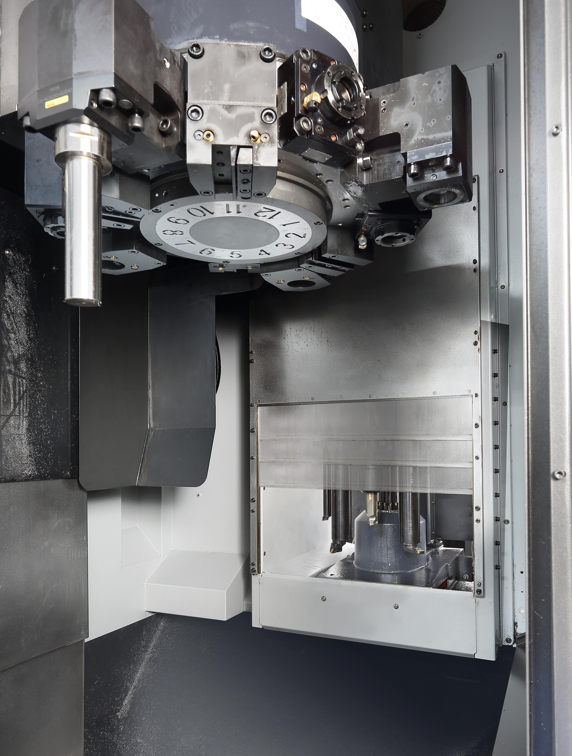

- Optional Automatic Tool Changer (ATC) with a Capto tool storage capacity of 12 (Capto C6) or 8 (Capto C8) tools.
- Optional Servo Straddle Tool allows simultaneous dual-side cutting for maximum productivity (only for PUMA V8300 models).

2. Control Systems
The PUMA V8300 series offers two world-class CNC options:
DN Solutions-FANUC i Plus (F0i-F Plus):
- Features a standard 15-inch color display with an ergonomic layout and a physical QWERTY keyboard for quick data input. An iHMI touchscreen is available as an option.
- Comes standard with the EZ Guide i conversational programming solution, enabling operators to program complex cycles without G-code expertise.
- Equipped with the EZ WORK suite to simplify machine setup and operation.
- Standard part program storage size of 5120M (2MB), supporting up to 1000 registered programs.
- Features standard AI Contour Control I (40 blocks) for high-speed, high-precision machining, with an option to upgrade to AI Contour Control II (200 blocks).
Siemens SINUMERIK 828D:
- Features a standard 15.6-inch color display with touch screen capability and a QWERTY keyboard.
- Includes the conversational Shop-turn functionality and the EZ Operation package.
- Provides real-time cutting and tool path simulation (including a 3D simulation of the finished part) to verify toolpaths before actual cutting.
- Features the Protection Zone Synchronized Actions safety function, which checks for interference between the turret and the spindle to prevent operator-induced collisions.

3. Production Applications, Workpiece Materials & Real Products
Production Applications:
- Engineered for high-productivity industries such as Automotive, Aerospace, Energy, and Die & Mold.
- Seamlessly integrates into automation systems. It supports robot cells like the ROBOSOL (Robot Cell Solution), interfacing via PMC I/O modules or PROFIBUS-DP to optimize loading/unloading and maximize uptime.
Workpiece Materials:
- Capable of heavy-duty cutting on a wide range of standard engineering materials, including Carbon Steel, Cast Iron, and Aluminium.
- Supports a specialized Graphite Package option designed to safely machine abrasive materials like graphite (graphite/carbon electrodes commonly used in Die & Mold EDM applications).
Real Workpiece Products:
- Designed for large-diameter, heavy, and complex disk-shaped or cylindrical components.
- Real-world parts include gear blanks, wheel hubs, disc brakes, flanges, valve bodies, and heavy-duty engine casings.
- Operational setups display massive workpieces clamped on high-rigidity hydraulic chucks (such as the standard HC-24) undergoing multiple operations in a single setup, including face turning, OD/ID profiling, and synchronized radial or axial drilling.

Specifications of PUMA V8300, PUMA V8300M, PV 9300, PV 9300M

Category	Specification	PUMA V8300	PUMA V8300M	PV 9300	PV 9300M
CAPACITY	Chuck size	15 inch	15 inch	24 inch	24 inch
	Max. Turning Diameter	830 mm	830 mm	930 mm	930 mm
	Max. Turning Length	780 mm	690 mm	801 mm	801 mm
TRAVELS	X-Axis Rapid Traverse	20 m/min	20 m/min	20 m/min	20 m/min
	Z-Axis Rapid Traverse	20 m/min	20 m/min	20 m/min	20 m/min
	X-Axis Travel Distance	495 mm	495 mm	485 mm	485 mm
	Z-Axis Travel Distance	780 mm	780 mm	890 mm	890 mm
MAIN SPINDLE	Max. Spindle Speed	2000 r/min	2000 r/min	1800 r/min	1800 r/min
	Max. Spindle Power	37 kW	37 kW	45 kW	45 kW
	Max. Spindle Torque	2592 N·m	2592 N·m	4444 N·m	11494 kg
TURRET	No. of tool station	12 ea	12 ea	12 ea	11495 kg
TURRET	Rotary Tool r/min	-	4000 r/min	-	11496 kg
DIMENSIONS	Length	2005 mm	2005 mm	2144 mm	11497 kg
	Height	3636 mm	3636 mm	3650 mm	11498 kg
	Width	2715 mm	2715 mm	3065 mm	11499 kg
	Weight	9400 kg	9500 kg	11400 kg	11500 kg
