DVF 5000,DVF 5000 2nd Gen
Post on 09-07-2025 11:24:43 PM - 1065 Views
Product code: P000009
CNC 5-Axis to Vertical Machining Center
DVF 5000 5-axis machining centres are designed for component manufacturers looking to machine high-precision, complex parts in one hit. Equipped with leading edge technology and supplied ‘automation- ready’, these machines will take your productivity and performance to a whole new level.
Advantages:
Easy to Operate
High Precision
Multitasking Capability
Stability
Application: High-precision machining for molds, aerospace, automotive, medical.

details
Downdload document

Highlights
Solutions for complex shapes
12000 / 18000 r/min high-speed spindle
2-axis tilting table from Ø400 mm to Ø800

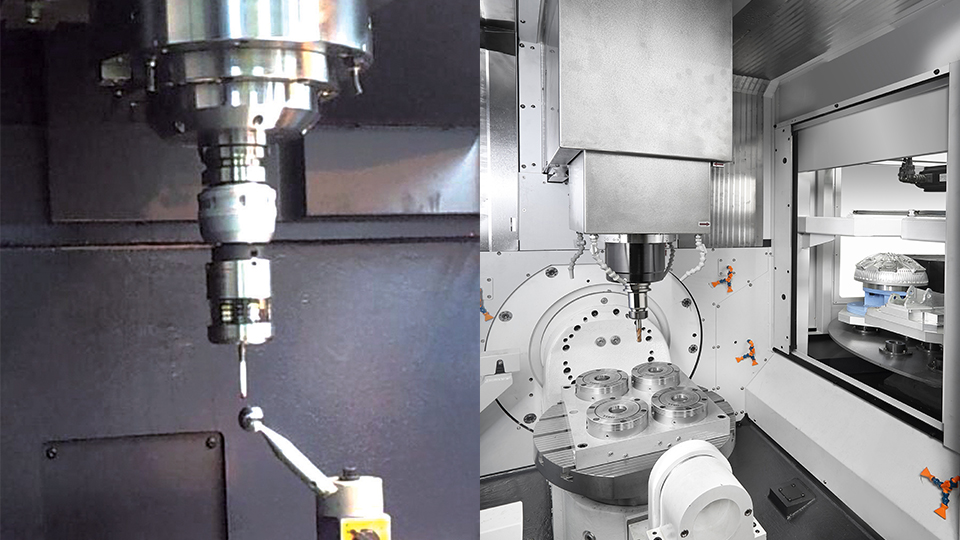

High-precision

Tool length measurement probe is provided as standard.
Integrated thermal compensation systems for spindle and structure
Spindle cooling provided as standard

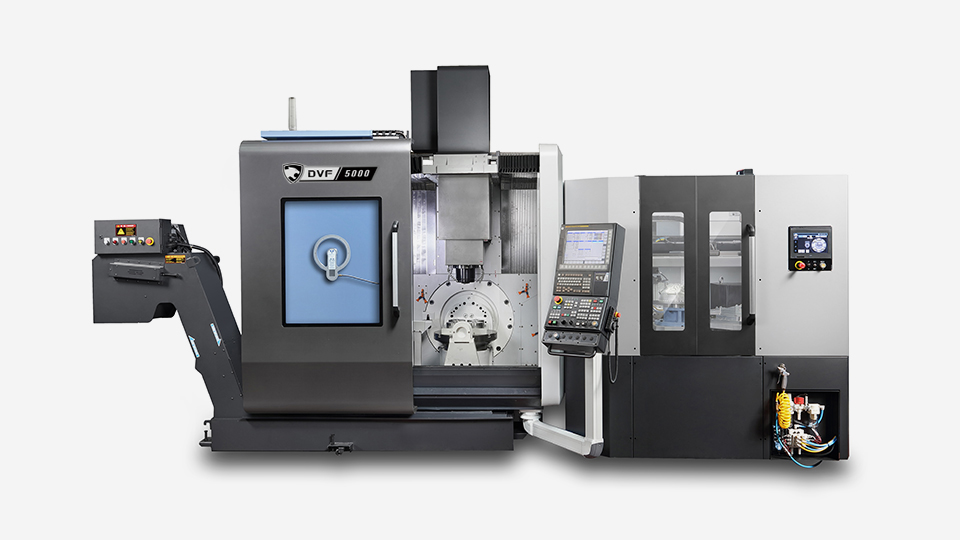

User-friendly machine

The tool magazine is able to hold up to 120 tools and the multi-pallet system facilitates unmanned running.
Compact automation systems are available (AWC, RPS, LPS)

Product Specifications

METRIC	DVF 5000	DVF 5000 2nd Gen
TRAVELS
X-Axis Travel Distance (mm)	625	650
Y-Axis Travel Distance (mm)	450	520
Z-Axis Travel Distance (mm)	400	480
FEED RATES
X-Axis Rapid Traverse (m/min)	40	42
Y-Axis Rapid Traverse (m/min)	40	42
Z-Axis Rapid Traverse (m/min)	40	42
C-Axis Rapid Traverse (r/min)	20	25
B-Axis Rapid Traverse (r/min)	20	25
MAIN SPINDLE
Max. Spindle Speed (r/min)	12000 {18000}	15000 {20000}
Max. Spindle Power (kW)	18.5 {22}	18.5/11
Max. Spindle Torque (N·m)	118	118 {156}
Tool Taper	ISO#40	ISO #40
TABLE
Rotary Table Diameter (mm)	500	630
Maximum Workpiece weight (kg)	400	400
TOOL STORAGE CAPACITY
No. of tool station	30 ea	30 - 120 ea
DIMENSIONS
Length (mm)	2700	2795
Height (mm)	2890	2867
Width (mm)	2205	2347
Weight (kg)	7500	8000

NEW DVF 5000 5-AXIS Vertical Machining Center

DVF 5000 AWC (2210)
