BM1530M, BM Series fixed-crossrail double-column CNC vertical machining center

BM 1530M fixed-crossrail CNC vertical machining center

BM 1530M fixed-crossrail CNC vertical machining center thumb

BM 1530M fixed-crossrail CNC vertical machining center
Post on 06-08-2026 10:24:40 AM - 94 Views
Product code: BM 1530M
The BM Series is a double-column (bridge-type) vertical machining center lineup from DN Solutions, optimally designed for manufacturers machining large, oversized dies and mold tools (e.g., press tools, injection mold tools, etc.) who require high-performance and high-accuracy machine tools.

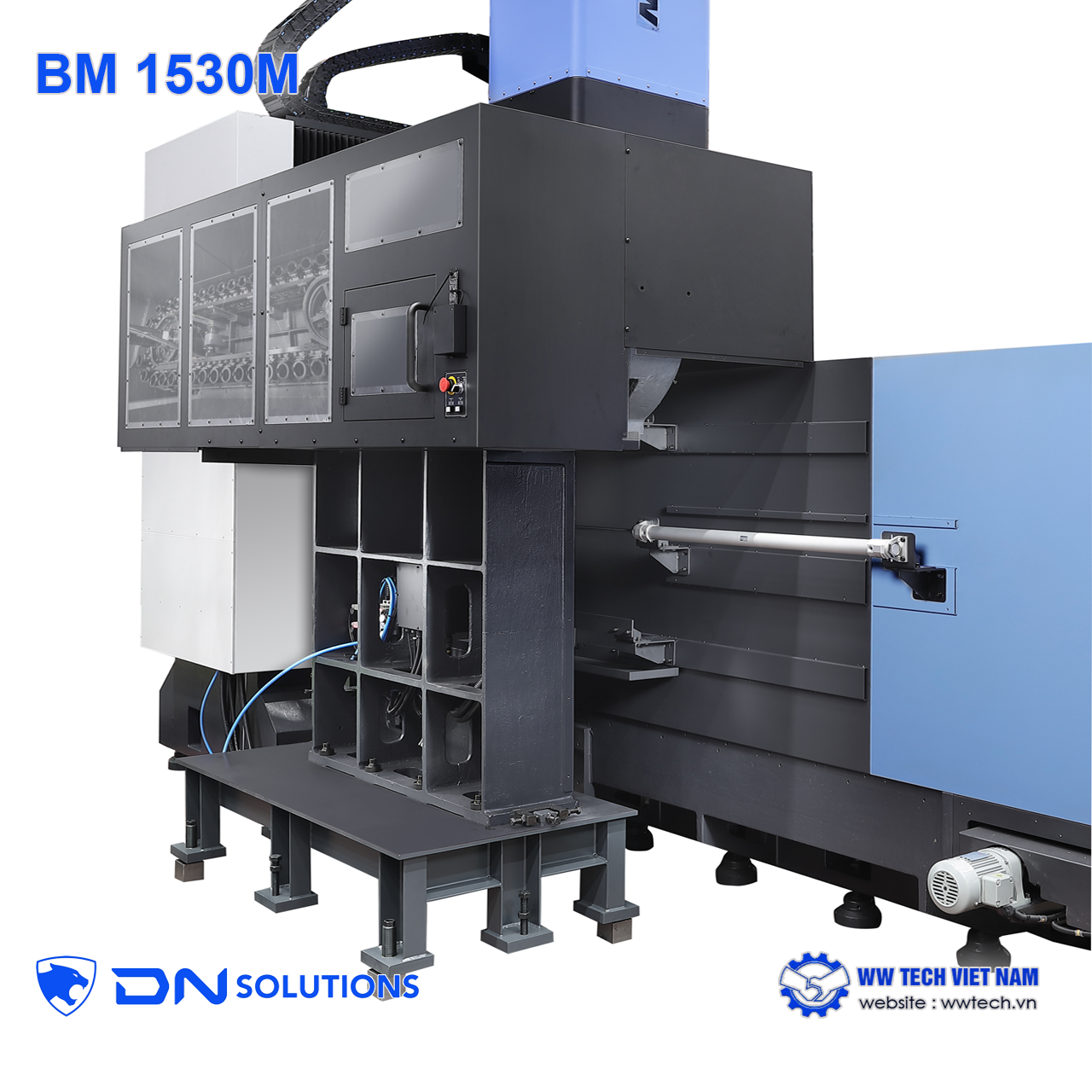

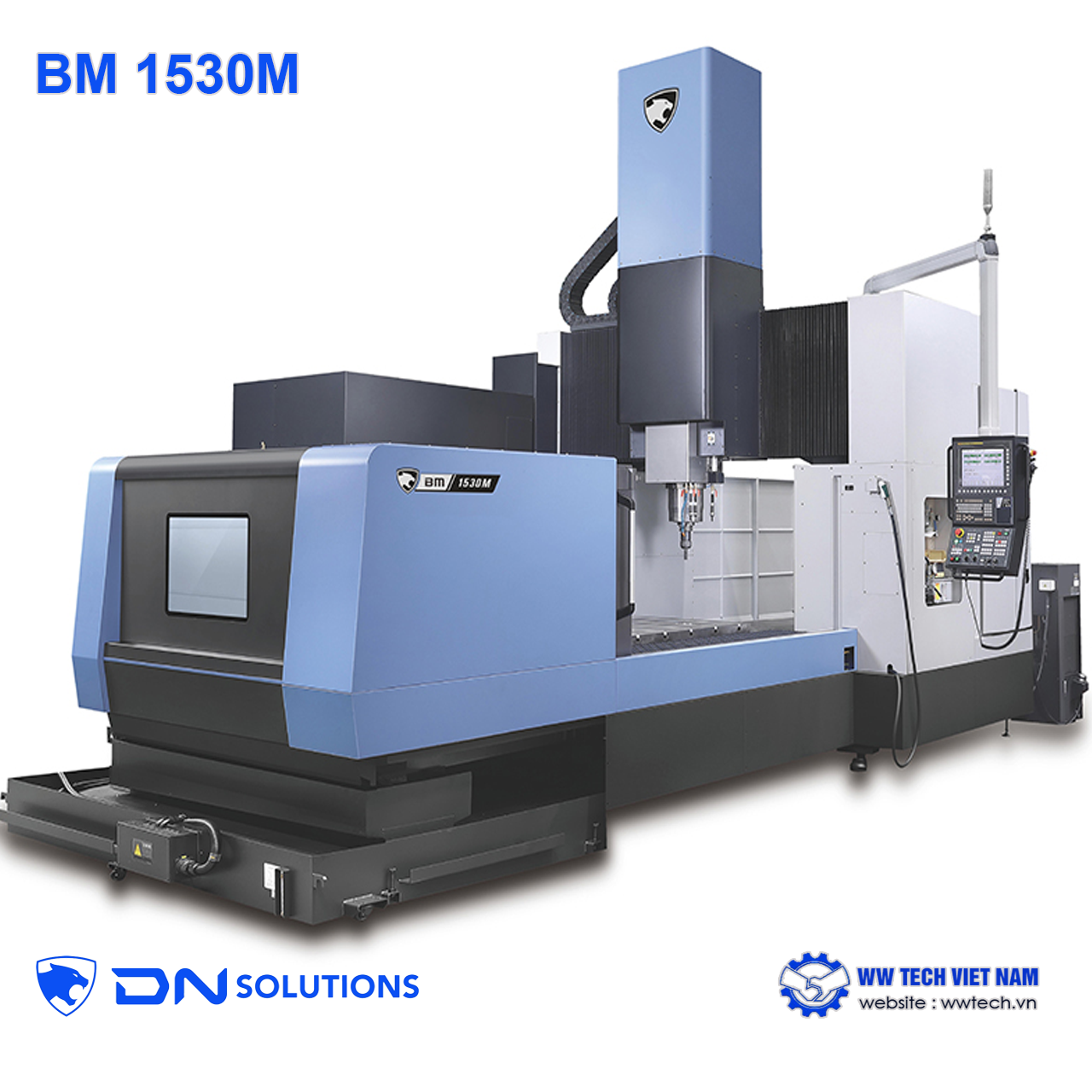

The BM 1530M is a large-scale, fixed-crossrail bridge-type CNC vertical machining center. The machine is specialized for machining large molds, precision mechanical components, and applications in the automotive sector

details

Key Technical Features
The Doosan BM Series is a double-column (bridge type) vertical machining center optimized for large die and mold parts, standing out for its high stability and precision.
Specifically, the BM 1530M model features highly impressive specifications and configurations:
- Size and Machining Travel: The table size is 3000 x 1350 mm with a load capacity of up to 8000 kg. The X/Y/Z-axis travel distances are 3000 / 1550 / 800 mm, respectively, and the passing width between the two columns is 1700 mm.
- Powerful Built-in Spindle: The machine is equipped with a built-in spindle delivering speeds up to 12,000 r/min, a motor power of 30/25 kW, and a maximum torque of 420 N.m.

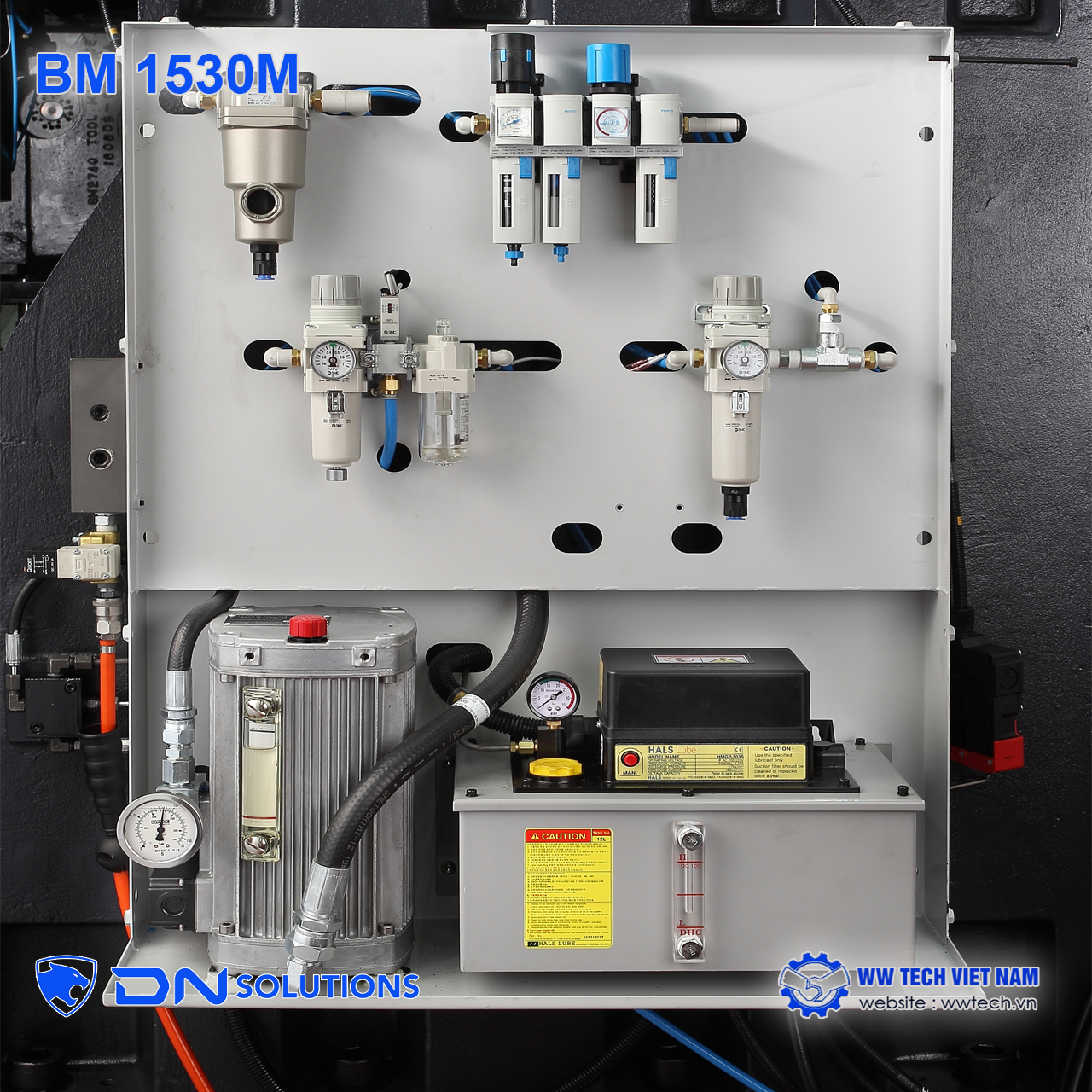

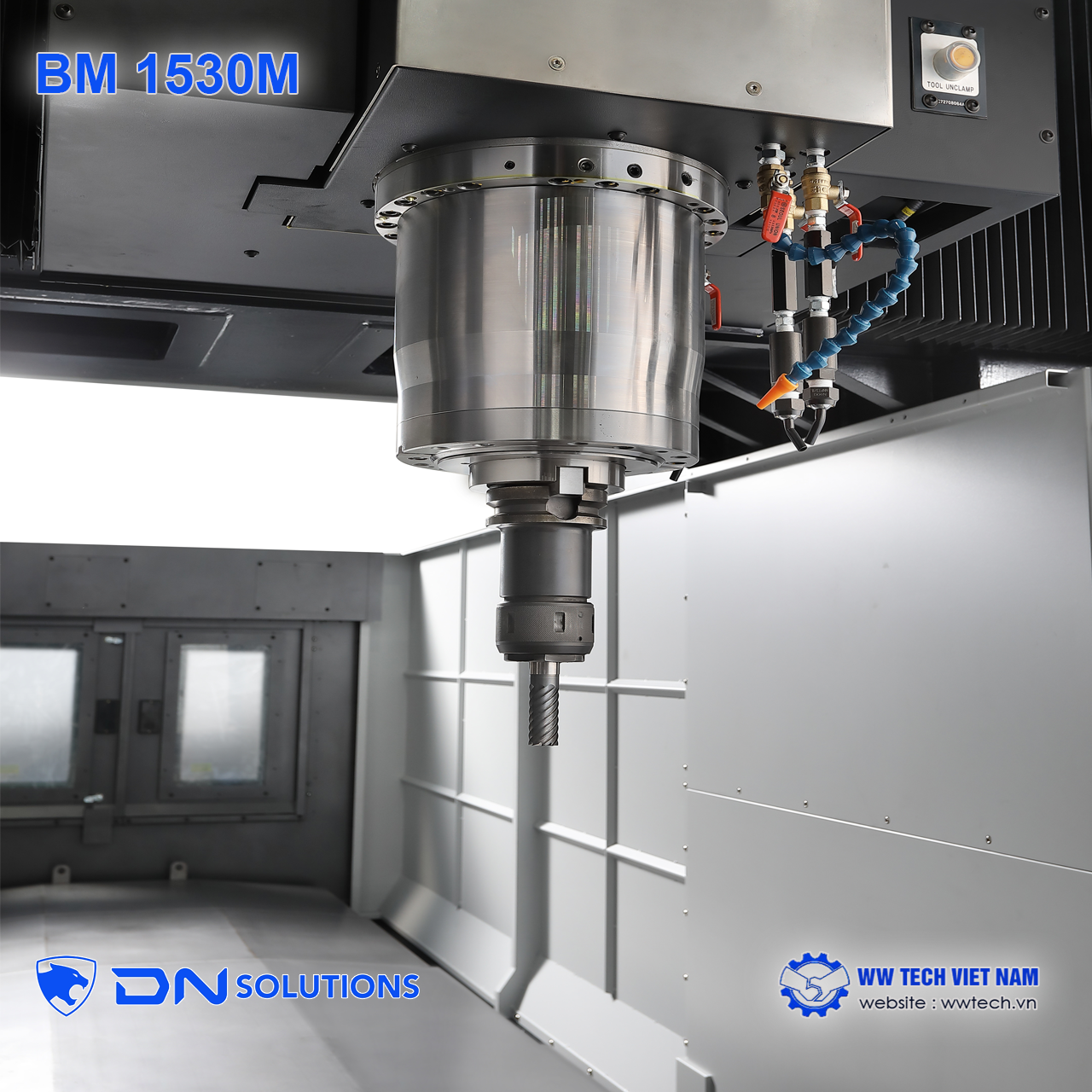

- Deep Pocket Machining Capability: The long-nose spindle structure protrudes by 293 mm (11.5 inches). This, combined with a standard dual contact spindle system, minimizes vibration, enhances rigidity, and extends tool life.

- Guideways and Precision: It utilizes roller LM guideways on all three axes. Additionally, Heidenhain linear scales and a ball screw nut & bearing cooling system are provided as standard features to maintain long-term absolute precision.
- Automatic Tool Changer (ATC): It features a quick CAM-type tool changer with a 3.0-second tool-to-tool time, a standard storage capacity of 40 tools (expandable to 60 tools), and uses ISO #50 or BT50 tool shanks.

CNC Control System
The BM Series offers advanced control solutions and software to ensure excellent cutting surface quality:
- Standard: The FANUC 31iB PLUS controller features a 15-inch color touch screen, an intuitive iHMI interface, and a QWERTY keyboard. This system includes 4MB of memory and AI Contour Control II (AICC II, 1000 blocks) for optimal mold machining.
- Optional Upgrades: Users can choose the Siemens SINUMERIK ONE with a 21.5-inch touch screen, offering a 50% improvement in processing speed. Another option is the Heidenhain TNC7 with a 24-inch touch screen, featuring built-in graphic simulation and 3D collision protection.
- Integrated Smart Software: The machine is pre-equipped with smart thermal displacement compensation for the spindle and structure, Tool Load Monitoring for Machining Centers (DTMM), Adaptive Feedrate Control (DAFC), and the user-friendly EZ work interface.

Applications in Production
This machine series is specifically designed for manufacturers specializing in oversized die and mold tools, such as press tools or injection molds.
It can flexibly handle a variety of cutting operations, from heavy-duty roughing to high-precision finishing.

Machining Materials
Based on cutting performance data and real-world components, the machine performs exceptionally well with materials such as:
- Carbon Steel: Capable of face milling, U-drilling, and tapping on materials like SM45C steel.
- Aluminum Alloys: Typically used for milling cast aluminum blocks or aerospace-grade aluminum alloys such as 7075 T7351.

Real-world Products
Common real-world products machined on the BM series include:
- Molds & Dies: Press molds, injection molds, automotive molds, and refrigerator molds.
- Aerospace: Aircraft skin components, wing ribs, engine fan blades, and engine cases.
- Automation and Precision Engineering: High-precision robot columns and automotive parts

BM Series Specifications
- M:Mold

Specifications	BM 1530M	BM 2035M	BM 2740M
CAPACITY
Table to spindle nose	1000 mm	1000 mm	950 mm
TRAVELS
X-Axis Travel Distance	3000 mm	3500 mm	4000 mm
Y-Axis Travel Distance	1550 mm	2050 mm	2700 mm
Z-Axis Travel Distance	800 mm	800 mm	800 mm
FEED RATES
X-Axis Rapid Traverse	16 m/min	16 m/min	12 m/min
Y-Axis Rapid Traverse	16 m/min	16 m/min	16 m/min
Z-Axis Rapid Traverse	16 m/min	16 m/min	16 m/min
MAIN SPINDLE
Max. Spindle Speed	12000r/min	12000 r/min	12000 r/min
Max. Spindle Power	7/24 TAPER kW	7/24 TAPER kW	30/25 kW
Max. Spindle Torque	12000 N·m	12000 N·m	420 N·m
Tool Taper	ISO #50	ISO #50	ISO #50
TABLE
Table Length	3000 mm	3500 mm	4000 mm
Table Width	1350 mm	1850 mm	2500 mm
Maximum Workpiece weight	8000 kg	10000 kg	15000 kg
DIMENSIONS
Length	4450 mm	4960 mm	5535 mm
Height	4770 mm	4770 mm	4675 mm
Width	8690 mm	9540 mm	10825 mm
Weight	29000 kg	35516 kg	48000 kg

Keyword: DN Solutions, Doosan, WW Tech Viet Nam, BM 1530M, BM Series, double-column fixed-crossrail, fixed-crossrail bridge-type, CNC vertical machining center, BM 2035M, BM 2740M
