Key Technical Features

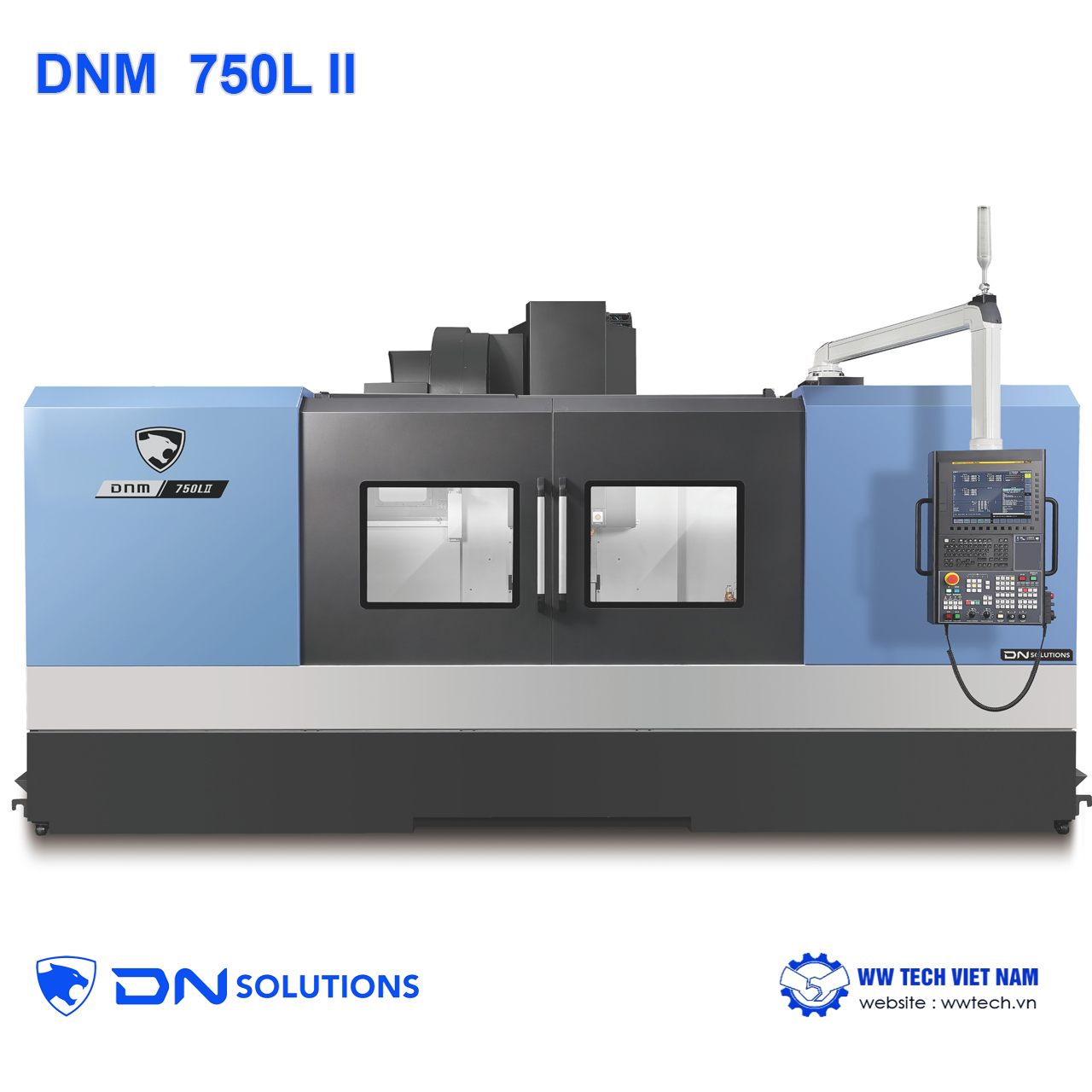

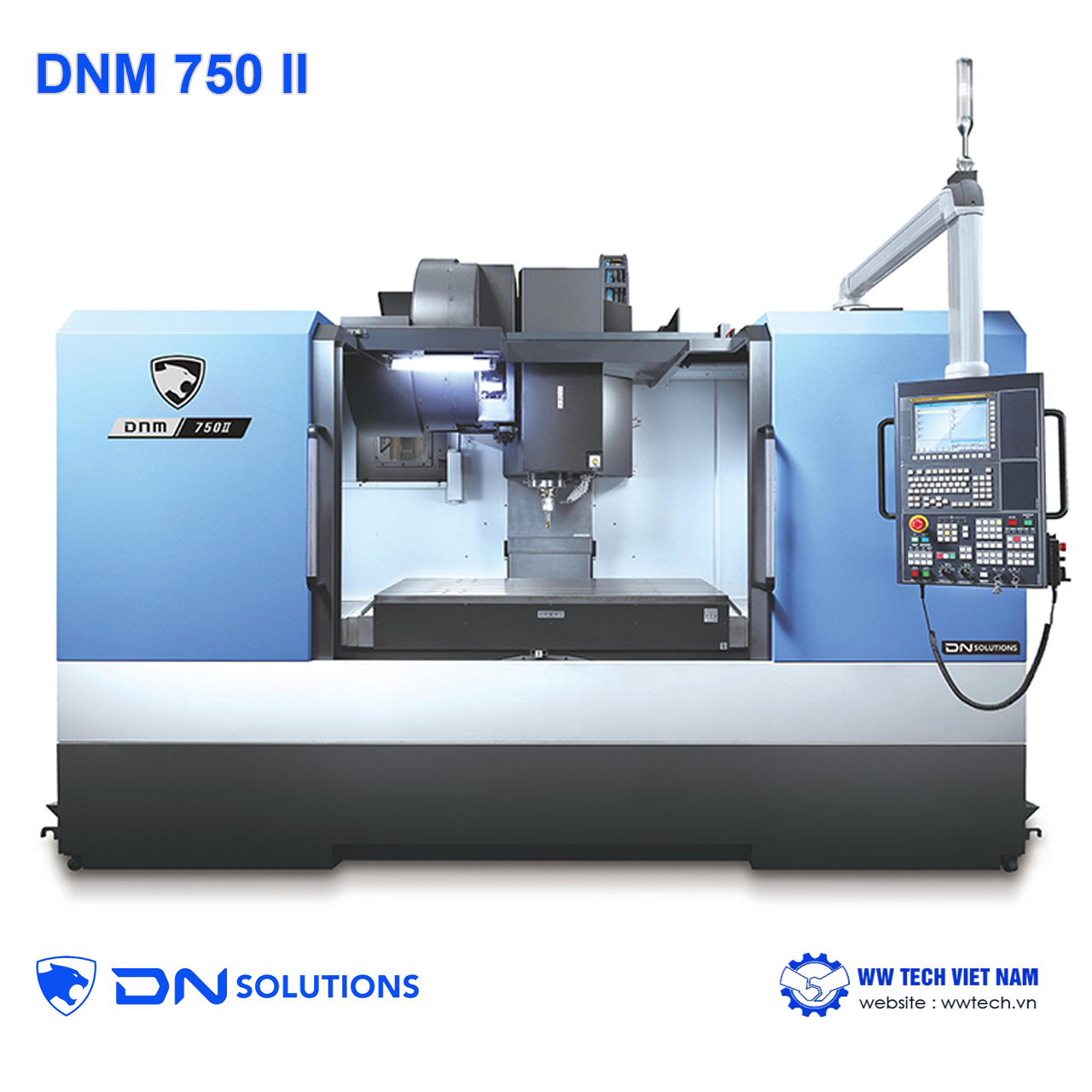

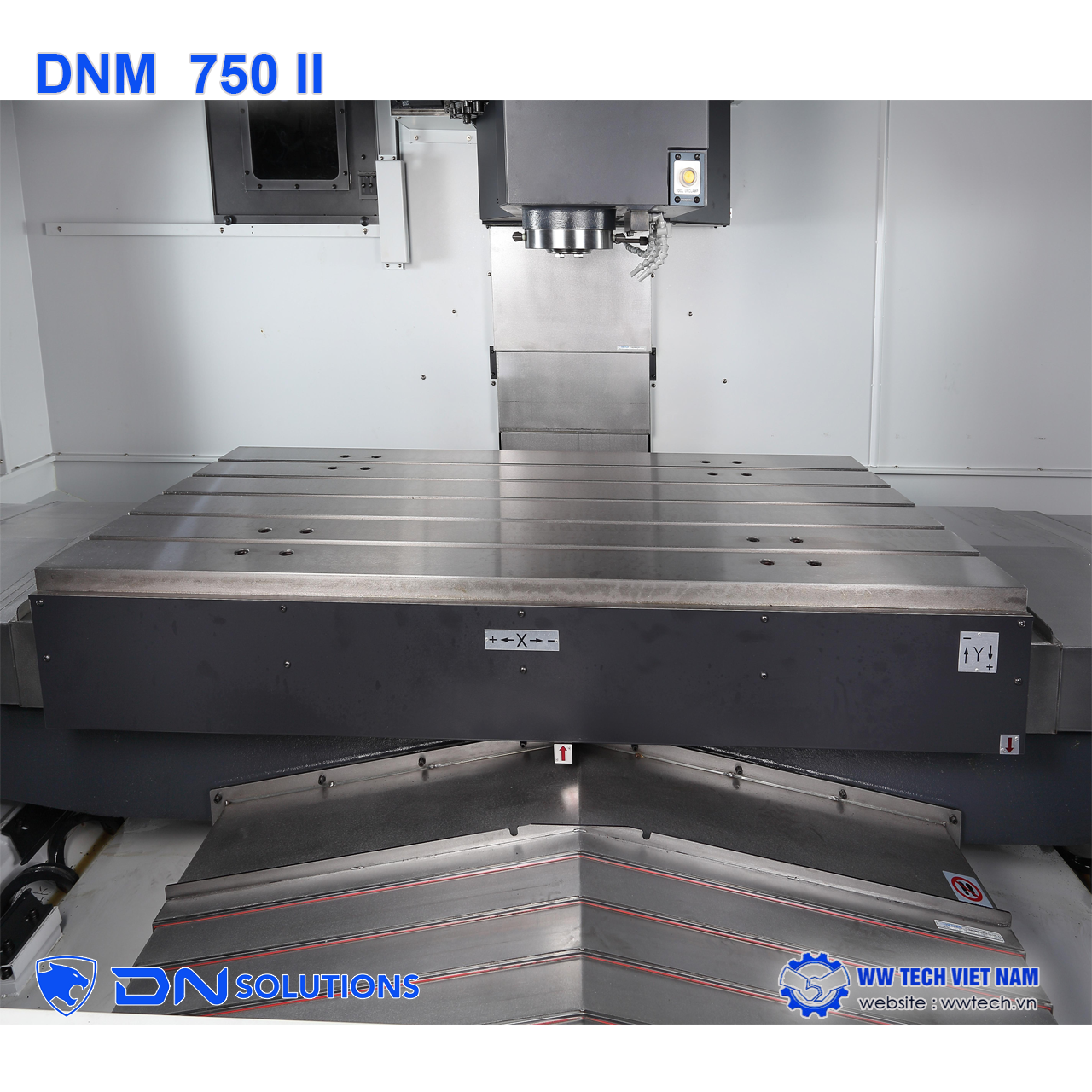

🔹Ultra-Large Working Area: The series provides an exceptionally long X-axis travel. The DNM 750 II features X/Y/Z travels of 1,630 / 762 / 650 mm, while the DNM 750 L II reaches 2,160 / 762 / 650 mm. Maximum table dimensions reach up to 2,160 x 760 mm, with maximum load capacities ranging from 1,500 kg to 1,800 kg.
🔹Powerful Spindle System: The machine supports belt-driven or direct-coupled spindles with standard speeds of 8,000 rpm or 12,000 rpm, as well as a high-speed option up to 30,000 rpm. The spindles feature high-power motors up to 28 kW (with FANUC control) or 32 kW (with HEIDENHAIN control). Models with the "/50" suffix feature a large ISO #50 spindle taper.
🔹High-Rigidity Guideway System: All axes are equipped as standard with Roller Linear Motion (LM) guideways, doubling the lifespan and rigidity compared to conventional ball-type guideways. The DNM 750 L II model specifically utilizes a 4-row roller guideway configuration on the Y-axis to eliminate overhang and maximize stability.
🔹Thermal Control & Energy Efficiency: Oil cooling for the spindle and ball screw nuts comes standard, minimizing thermal deformation and maintaining accuracy during continuous operation. Additionally, the machine holds an Energy Certificate, achieving a 6.67% reduction in power consumption compared to the previous generation thanks to IE3/IE4 high-efficiency motors, LED lighting, and optimized electrical cabinet cooling.

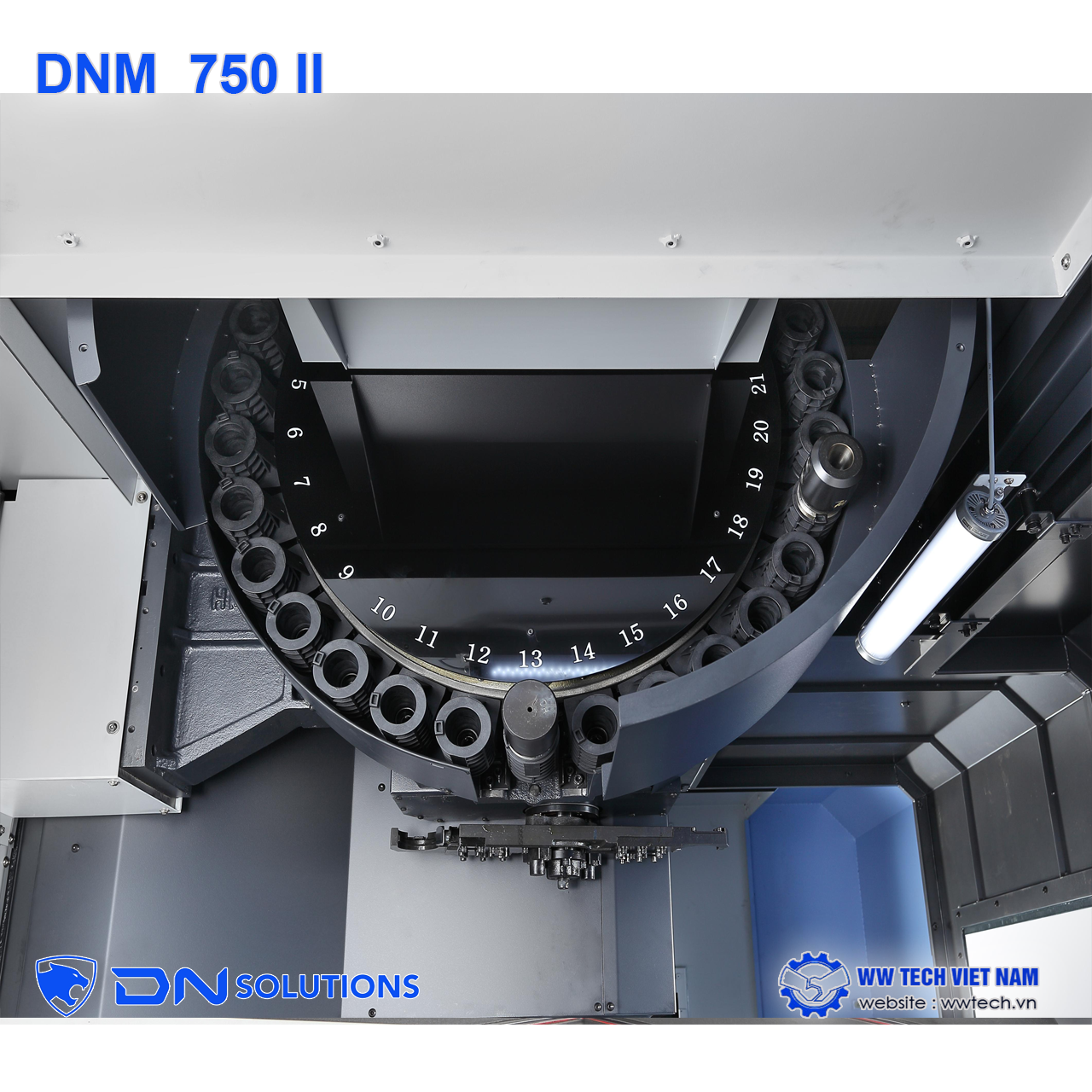

🔹Automatic Tool Changer (ATC): The CAM-type tool change mechanism delivers ultra-fast speeds, holding a standard storage capacity of 30 tools (optionally expandable to 40 tools), with a Tool-to-Tool change time of just 1.3 seconds and a Chip-to-Chip time of 3.7 seconds.
🔹Smart Controllers & Software: Compatible with advanced CNC controls such as FANUC i PLUS, HEIDENHAIN TNC620, or SIEMENS S828D. The proprietary EZ WORK software facilitates quick operation and minimizes errors through tool management, thermal compensation, and adaptive feed rate control functions.
| Specifications | DNM 750 II | DNM 750 L II | DNM 750/50 II | DNM 750L/50 II |
| TRAVELS | | | | |
| X-Axis Travel Distance | 1630 mm | 2160 mm | 1630 mm | 2160 mm |
| Y-Axis Travel Distance | 762 mm | 762 mm | 762 mm | 762 mm |
| Z-Axis Travel Distance | 650 mm | 650 mm | 650 mm | 650 mm |
| FEED RATES | | | | |
| X-Axis Rapid Traverse | 30 m/min | 24 m/min | 30 m/min | 24 m/min |
| Y-Axis Rapid Traverse | 30 m/min | 24 m/min | 30 m/min | 24 m/min |
| Z-Axis Rapid Traverse | 24 m/min | 24 m/min | 24 m/min | 24 m/min |
| MAIN SPINDLE | | | | |
| Max. Spindle Speed | 8000 r/min | 8000 r/min | 8000 r/min | 8000 r/min |
| Max. Spindle Power | 18.5 kW | 18.5 kW | 22 kW | 22 kW |
| Max. Spindle Torque | 118 N·m | 118 N·m | 353.2 N·m | 353.2 N·m |
| Tool Taper | ISO #40{7/24 TAPER} | ISO #40{7/24 TAPER} | ISO #50{7/24 TAPER} | ISO #50 |
| TABLE | | | | |
| Table Length | 1630 mm | 2160 mm | 1630 mm | 2160 mm |
| Table Width | 760 mm | 760 mm | 760 mm | 760 mm |
| Maximum Workpiece weight | 1500 kg | 1800 kg | 1500 kg | 1800 kg |
| DIMENSIONS | | | | |
| Length | 3480 mm | 3480 mm | 3480 mm | 3480 mm |
| Height | 3170 mm | 3170 mm | 3370 mm | 3370 mm |
| Width | 3850 mm | 4900 mm | 3850 mm | 4900 mm |
| Weight | 13500 kg | 15000 kg | 13800 kg | 15300 kg |
Workpiece Materials
The machine's chip processing system and chip conveyor are optimized for handling common material groups, including steel, cast iron, aluminum, and stainless steel. It efficiently manages various chip types generated from these materials, such as long chips, short chips, needle-like chips, and sludge.
Manufacturing Applications & Practical Products

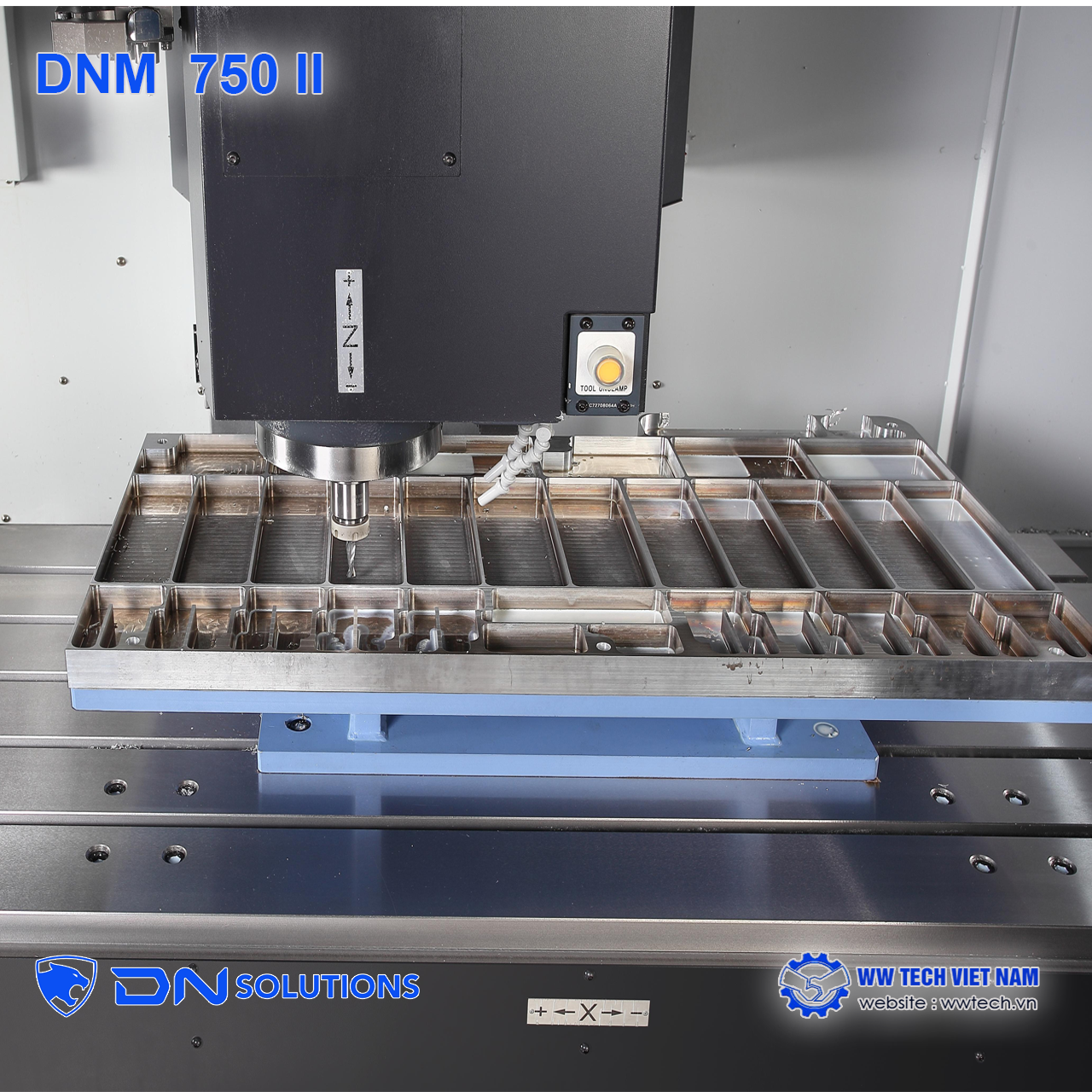

- With the largest machining area in its class and a heavy-load design, this machine is exceptionally suited for machining extra-large and heavy mechanical parts or workpieces.

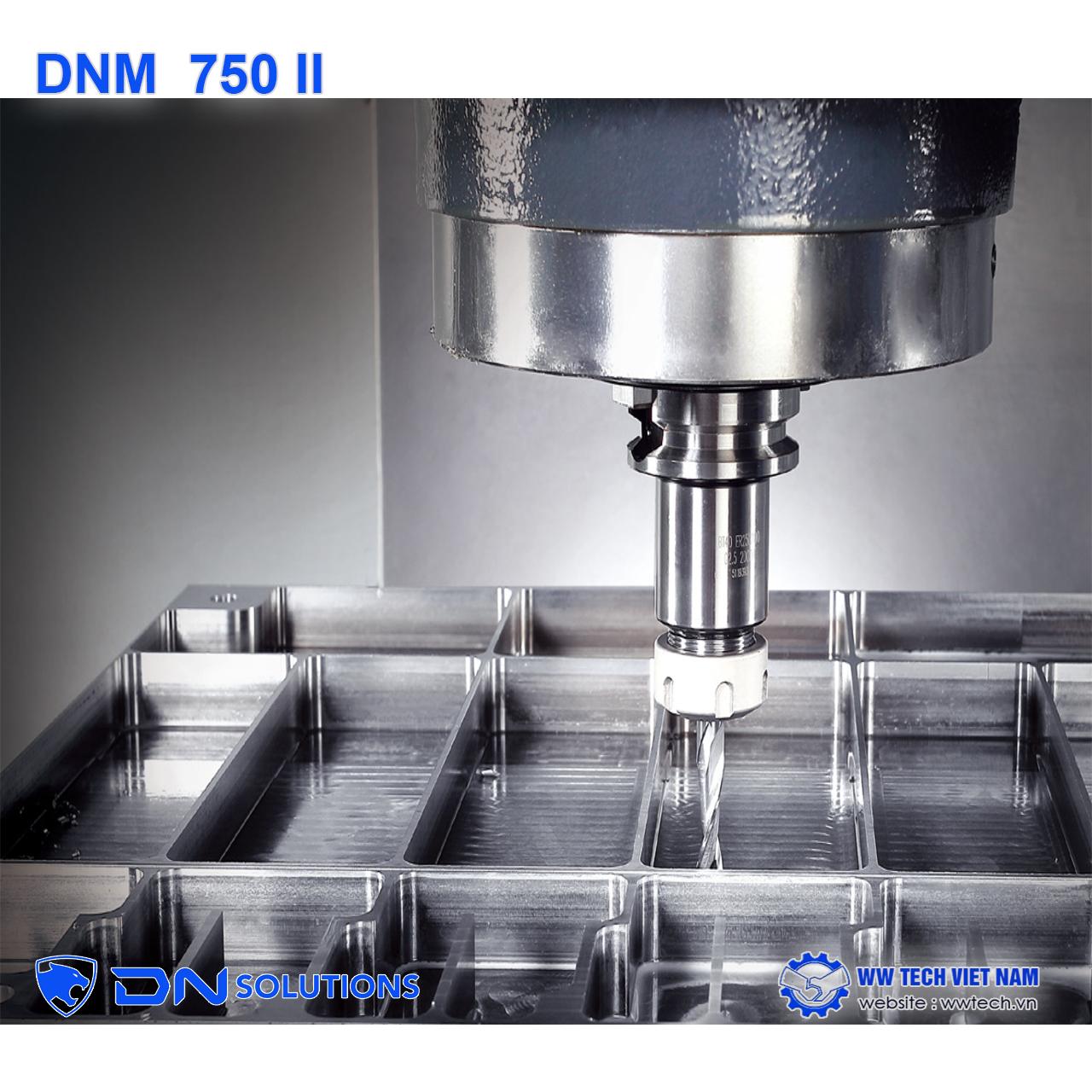

- Equipped with high-speed options (up to 15,000 rpm), rapid feed rates, and ball screw nut cooling systems, this series serves as an ideal choice for mold and die applications.
- Furthermore, the machine configuration allows for the integration of an optional 4th rotary axis on the table, enabling multi-face machining of complex components.
It is widely applied in producing real-world products across key industries, including Automotive, Aerospace, Energy, Die & Mold, Medical Devices, and Semiconductors 🧰 WW Tech Vietnam is an authorized distributor of DN Solutions.
